Heat Flux Sensors for Research, Testing & Thermal Measurement
Measure the heat itself, not just the temperature.
FluxTeq sensors and DAQ systems help researchers and engineers measure heat flux in batteries, buildings, fire testing, materials, aerospace, and thermal management applications.

HTHFS-01 · tested to 1000 °C
SUPPORTED PROJECTS WITH SpaceX Blue Origin Rocket Lab Lockheed Martin Caterpillar 3M Fraunhofer IBP
Three product lines

PHFS-01, PHFS-01e, large-area PHFS-09e and the Ultra-09 plate. The PHFS-01 is 380 microns thin with a built-in Type-T thermocouple. From $110

The threaded HTHF-Probe, with optional water-cooled housing, and the HTHFS-01 for the most extreme surfaces. Engineered to order

COMPAQ DAQ, FluxDAQ and FluxDAQ+. 8 differential inputs, 1–2 µV resolution, real-time plots. From $315
Where it gets used

Cell heat generation, cooling validation, thermal runaway studies.
High-temperature sensors for combustion and spacecraft environments.
Combustion and fire research, protective clothing tests.
In-situ R-value of walls, roofs and windows, non-invasive.
MEET


OUR STORY.
Founded in 2015, FluxTeq was the first company to patent a manufacturing process for mass-producing thin-film heat flux sensors. Being the first of it's kind, FluxTeq is the only company that can develop such sensors in bulk and sell at a fraction of the cost to comparable sensors on the market. Since then, FluxTeq has continued to develop and market new thermal sensor products using the latest and most advanced technology.
OUR VISION.
Our goal is to change the way people think about heat and temperature by being the first to offer heat flux sensors at a low cost for everyday use. While knowing the temperature of something may be useful, knowing the actual heat flux by measuring it directly can be much more predictive and useful in any application that involves heat transfer.
OUR TEQ.
Our patented process allows mass production of thin, flexible surface mount heat flux sensors. These general purpose sensors can be placed on any surface to measure the heat flux directly in units of W/m2. We are continuing to develop new top of the line sensor products for both heat flux and temperature measurements.
The Heat Flux Sensor
Advantage
OUR PRODUCTS

Small, low-cost, multipurpose

Large and highly sensitive for big surfaces

Ultra-sensitive for building science, soil studies, etc.

Robust, high temp sensors for extreme environments

High-resolution heat flux/ thermocouple loggers
What is a heat flux sensor?
A heat flux sensor (also called a heat flux transducer, heat flux meter or heat flux gauge) measures how much heat is flowing through a surface, in watts per square meter (W/m²). A temperature sensor tells you how hot something is; a heat flux sensor tells you how fast heat is moving into or out of it, and in which direction.
FluxTeq heat flux sensors are thin-film thermopiles. Heat passing through the sensor creates a small temperature difference across it, and the sensor turns that difference into a DC voltage proportional to the heat flux. Every sensor ships with its own calibrated sensitivity value, so the measured voltage converts directly to W/m².
How do I choose a heat flux sensor?
1. How hot does the surface get? FluxTeq PHFS thin-film sensors work from -50 to 120 °C. The HTHFS-01 and HTHF-Probe are built for extreme environments up to 1000 °C.
2. How much heat flux do you expect? Low heat flux, such as a building wall or insulation, needs a large, sensitive sensor (PHFS-09e or Ultra-09). High heat flux, such as a battery cell, electronics or a heated plate, suits a small sensor (PHFS-01, NuFLUX-M).
3. Is the surface flat or curved? The PHFS-01 and NuFLUX-M are thin and flexible and mount on curved surfaces. The copper-clad PHFS-01e is stiffer and more durable.
4. How many do you need? One to a few sensors: PHFS-01 at $110. Many sensors, or a sensor built into a product: PHFS-OEM at $70 each (minimum 4), with volume pricing.
You also need something to read the signal. Heat flux sensors output microvolts, so the reader should resolve about 1 µV. FluxTeq’s COMPAQ DAQ ($315), FluxDAQ ($450) and FluxDAQ+ ($670) are made for this and include Windows software. Small orders of PHFS sensors and DAQ systems typically ship in 1–2 business days.
Order a PHFS heat flux sensor and use it with our FluxDAQ data acquisition system or FluxDAQ+ data logger.
-
Ultra-high measurement resolution (1-2 microvolts)
-
8 differential inputs (heat flux/thermocouples)
-
View real-time plots
-
Record sensor data over time to an SD memory card

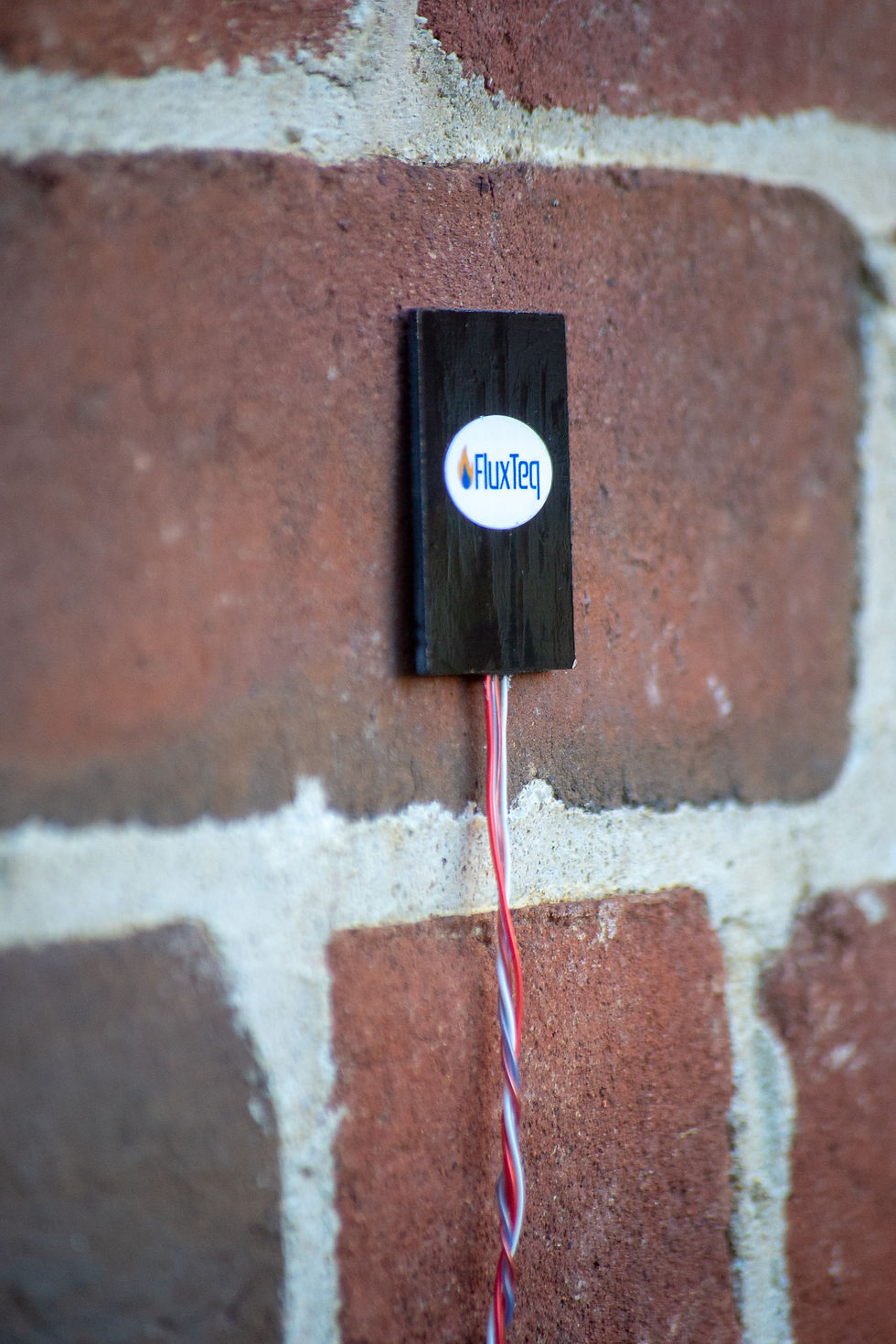

Use the PHFS-09e large surface area heat flux sensors or heat flux plate for in-situ R-value monitoring of building walls.
